CH Pedals - Wiring Diagrams:

Michael Sexton of CH Products provided me with these fine technical drawings.

Pedals Pro Pedals

Pedals:

Click the Drawing to Zoom in.

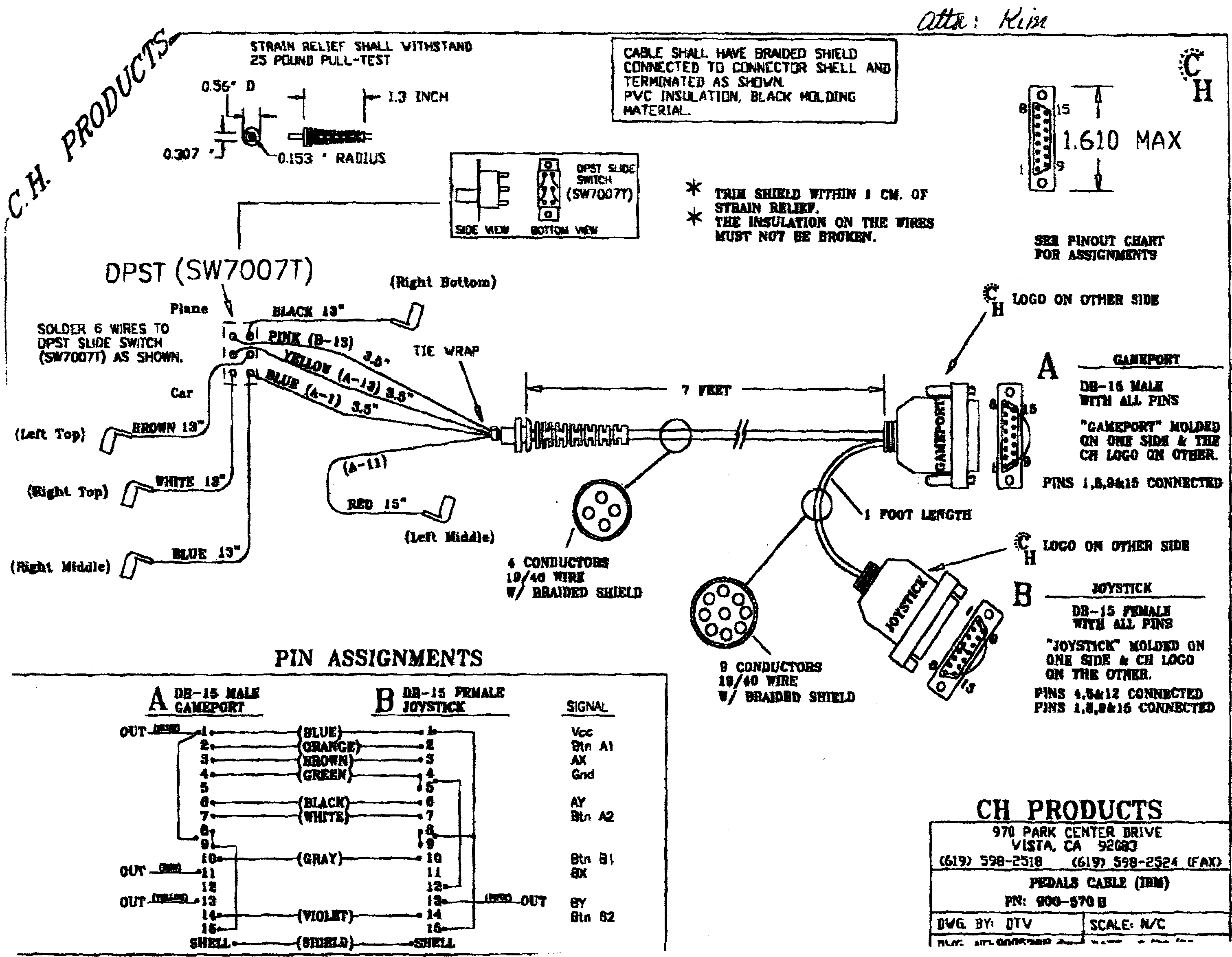

CH Products Pedals Technical Drawing

Pro Pedals:

Click the Drawing to Zoom in.

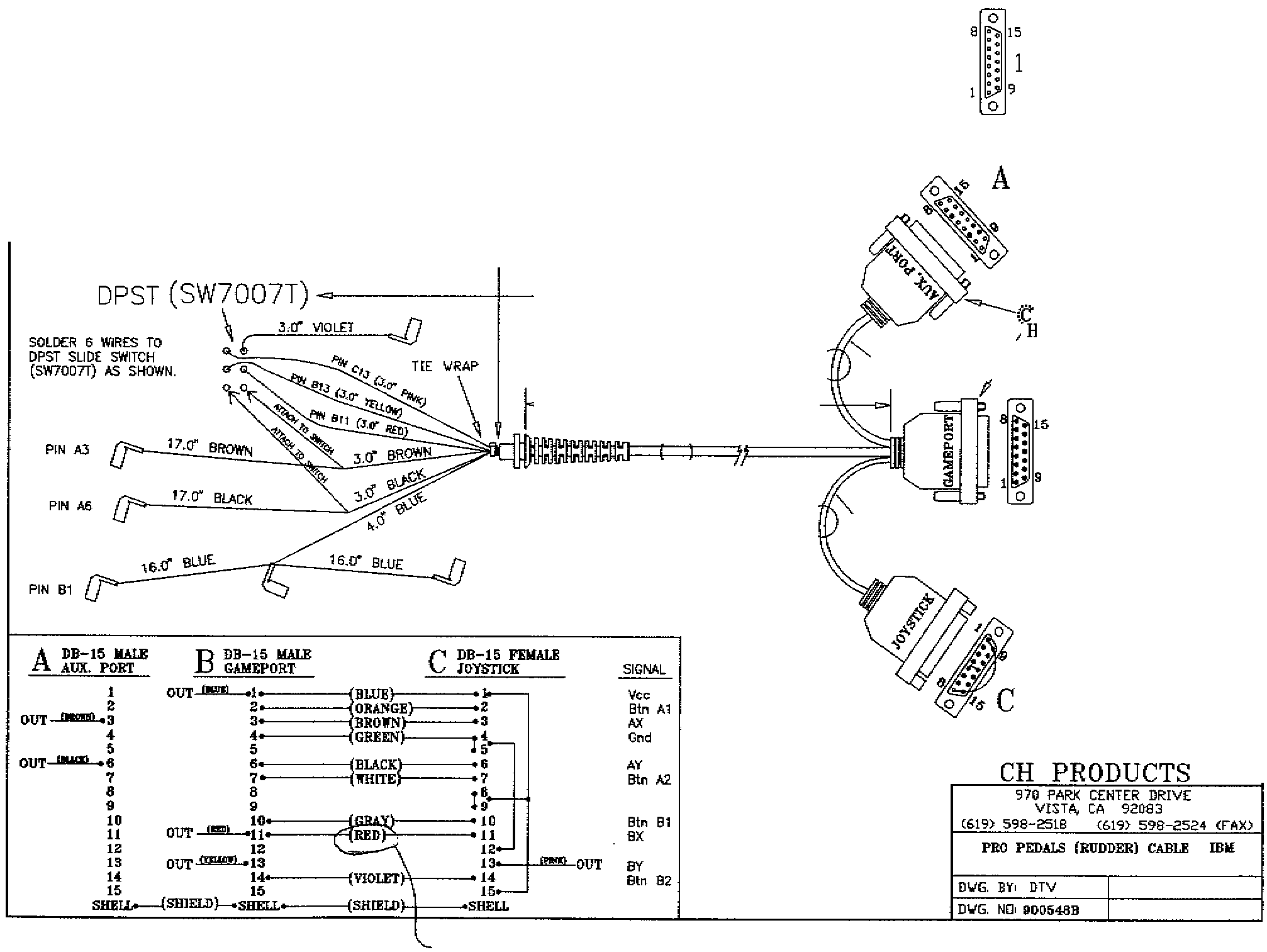

CH Products Pro Pedals Technical Drawing
